Seller's Description

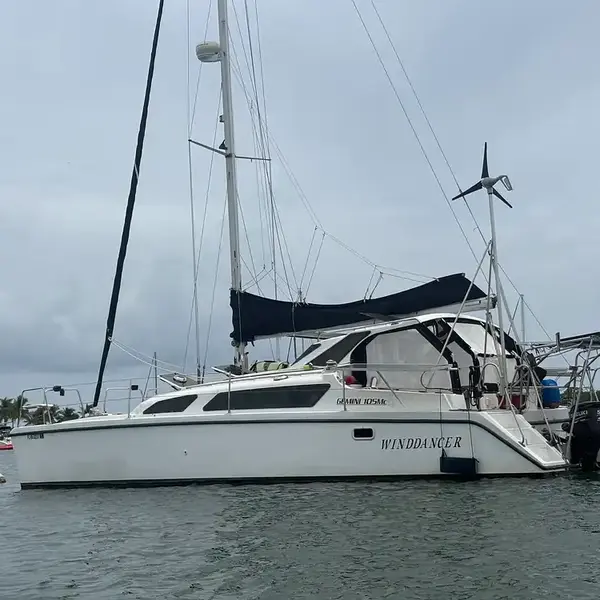

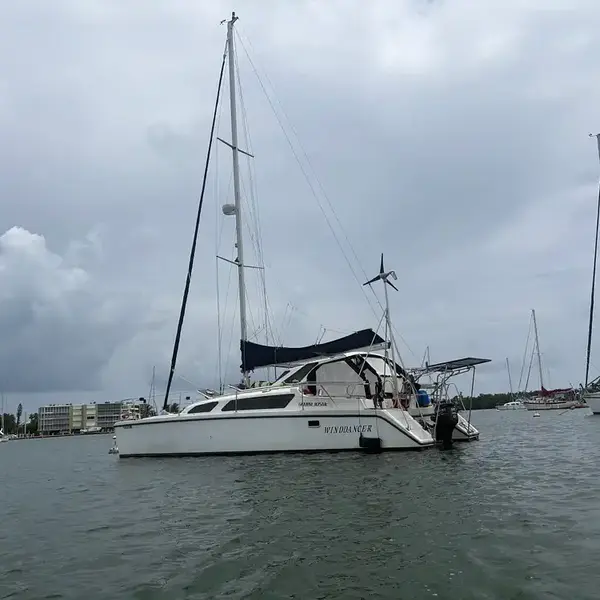

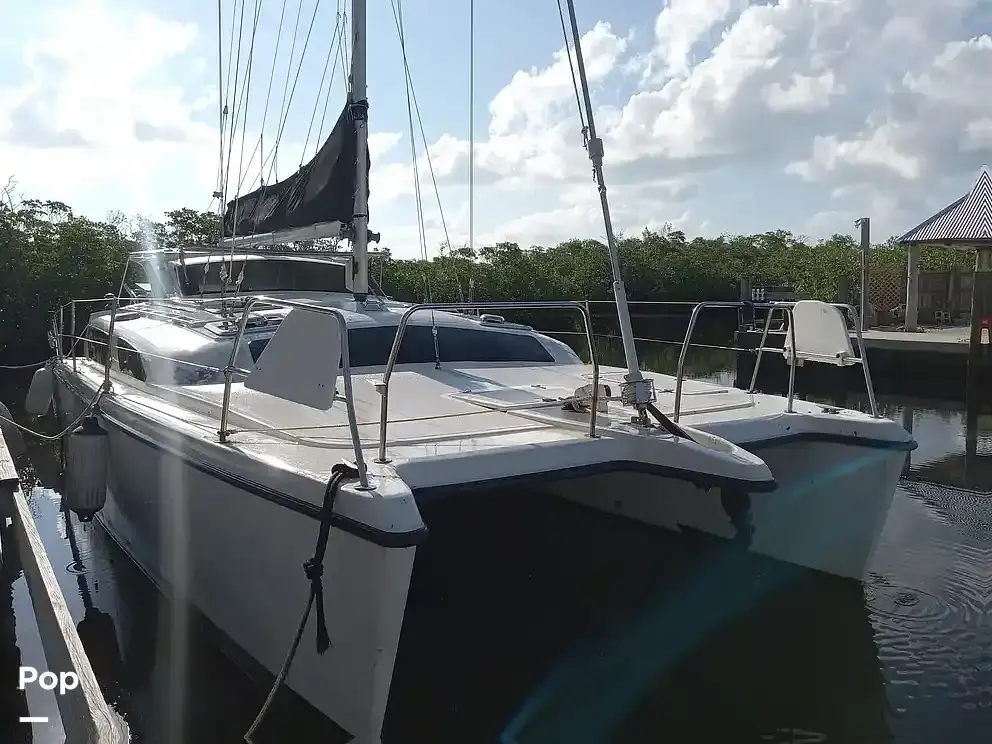

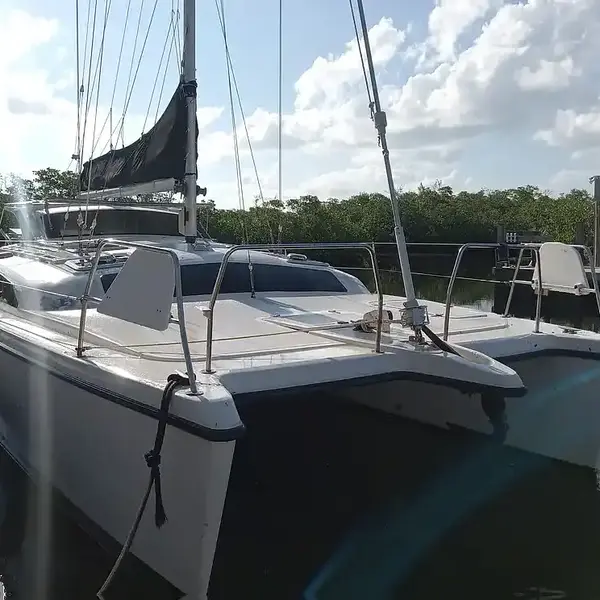

This fully off grid Gemini 105MC is not something you want to miss out on!

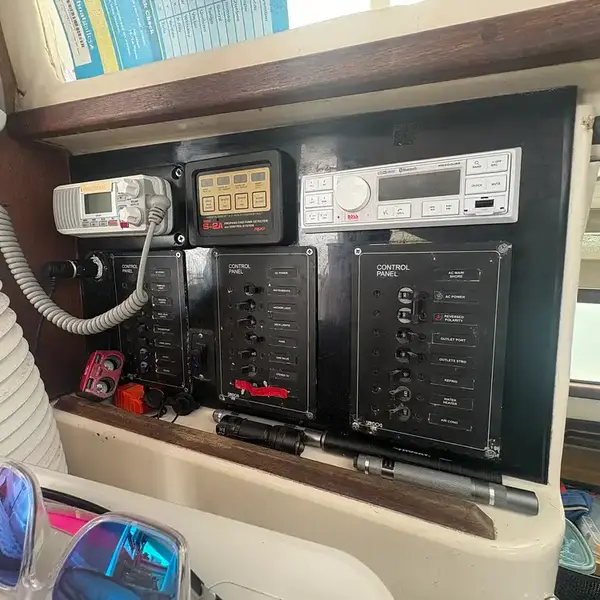

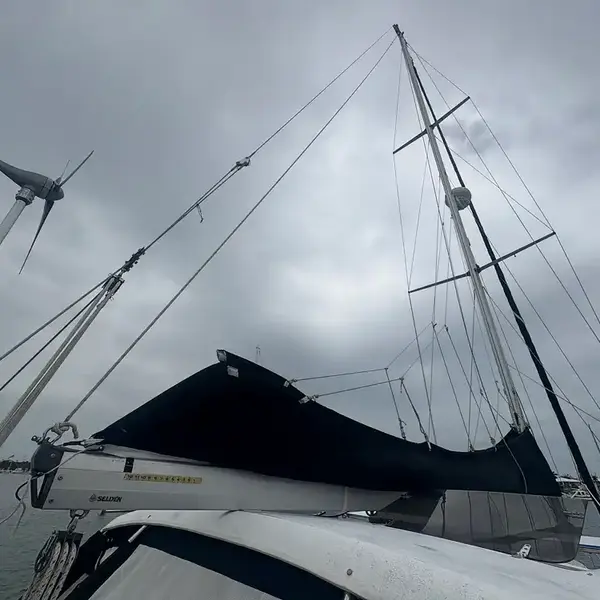

On board electric provided by a complete solar power system alongside a wind generator for added power.

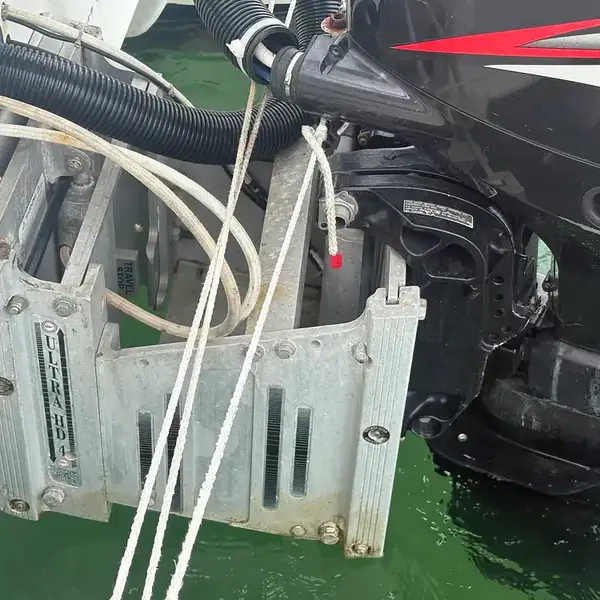

Custom built hydraulic jack plate/engine mount specifically engineered to allow for navigating waters as shallow as 1.5 feet minimizing cavitation.

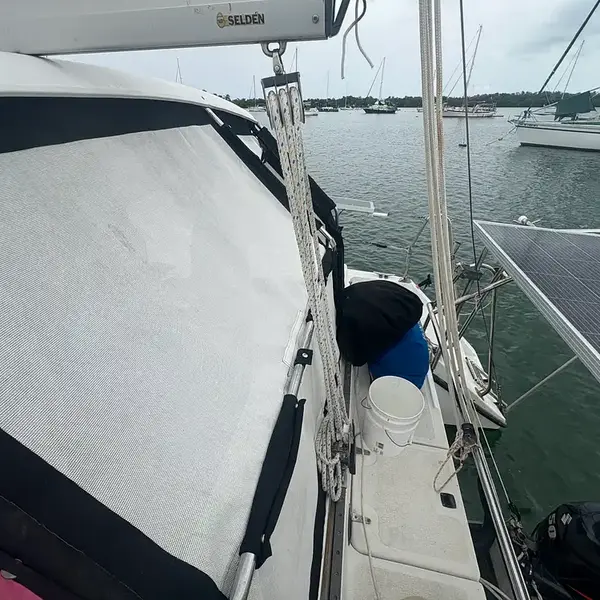

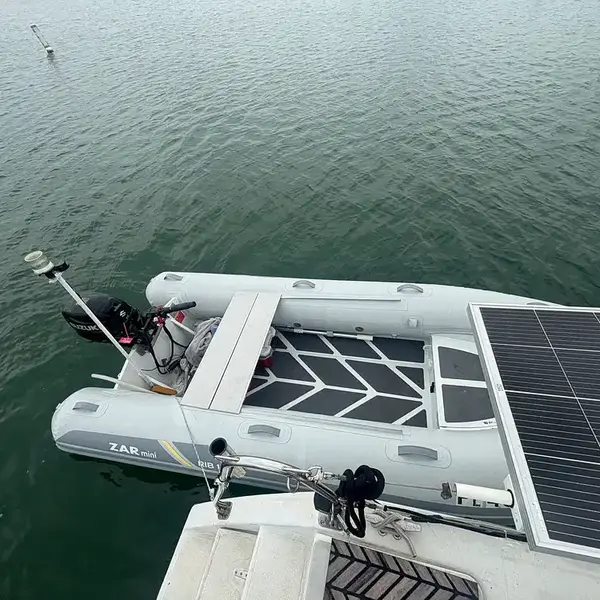

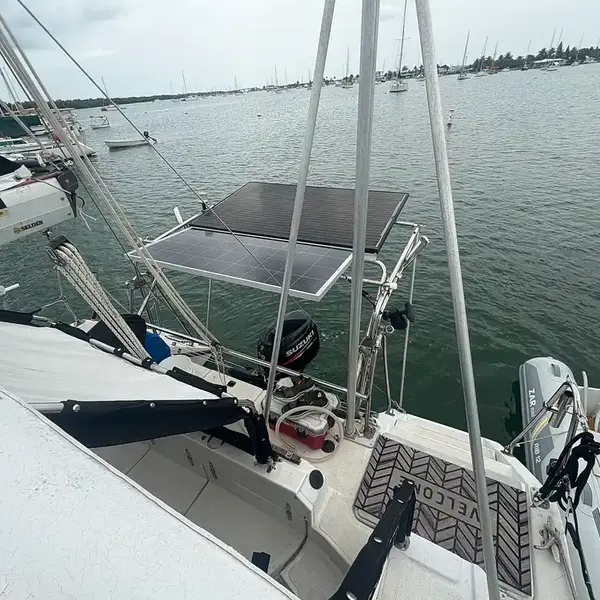

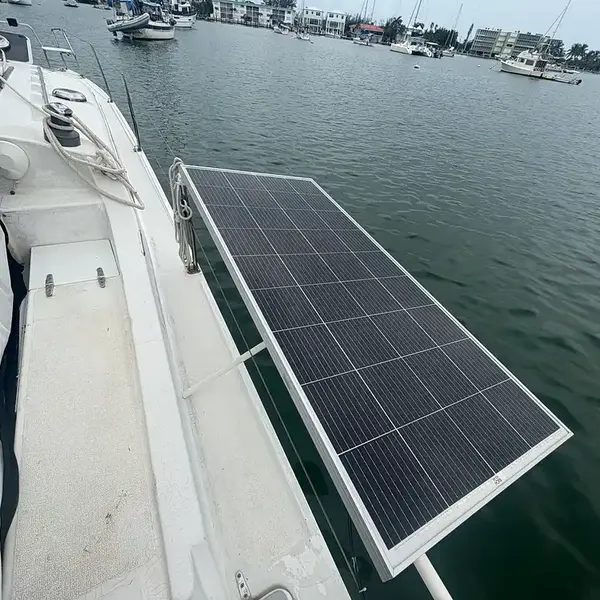

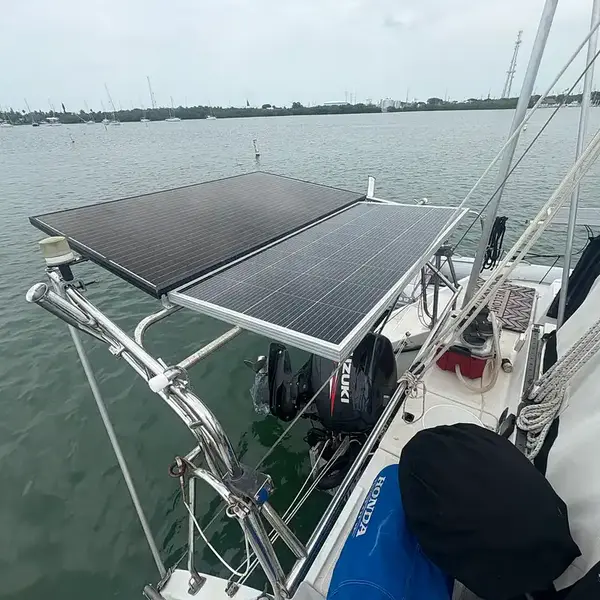

This 105MC comes suited with a fully operational solar system with custom mounts along with a strong inverter and plenty of energy storage within the house batteries.

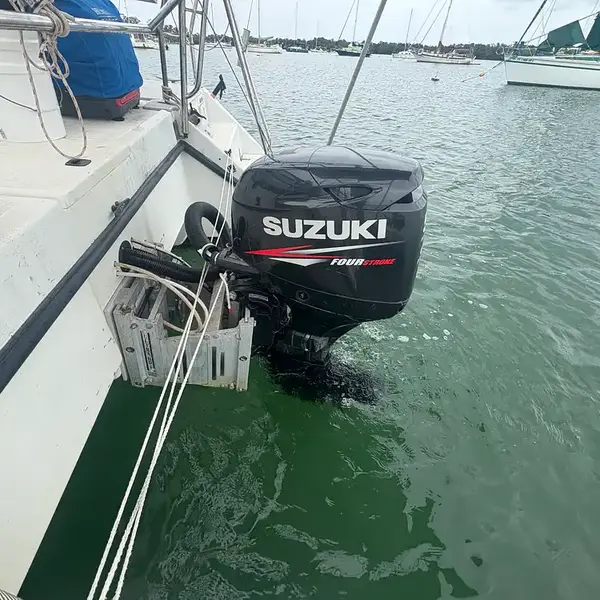

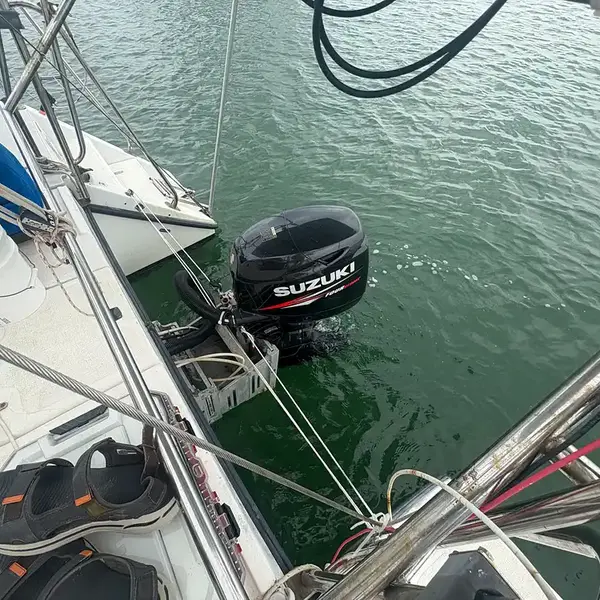

Powered by a bulletproof 2021 Suzuki 50hp outboard rigged up to move simultaneously with the Gemini’s rudder for added control under way.
Equipped with RayMarine auto pilot, built onto a swivel bracket designed for viewing within the cabin and cockpit by effortlessly lowering the glass pane window.
The Gemini has spent the majority of it’s life being used as an island hopper/dive boat with countless logged voyages to Bimini, as well as surrounding tropical paradises.
Specs
- Designer
- Tony Smith
- Builder
- Performance Cruising
- Associations
- ?
- # Built
- ?
- Hull
- Catamaran
- Keel
- Twin Centerboard
- Rudder
- ?
- Construction
- FG
Dimensions
- Length Overall
- 33′ 5″ / 10.2 m
- Waterline Length
- 31′ 9″ / 9.7 m
- Beam
- 14′ 0″ / 4.3 m
- Draft
- 1′ 6″ / 0.5 m — 5′ 6″ / 1.7 m
- Displacement
- 8,000 lb / 3,629 kg
- Ballast
- ?
Rig and Sails
- Type
- Sloop
- Reported Sail Area
- 690′² / 64.1 m²
- Total Sail Area
- ?
Mainsail
- Sail Area
- ?
- P
- ?
- E
- ?
- Air Draft
- ?
Foresail
- Sail Area
- ?
- I
- ?
- J
- ?
- Forestay Length
- ?
Auxilary Power
- Make
- Westerbeke
- Model
- ?
- HP
- 27
- Fuel Type
- Diesel
- Fuel Capacity
- 36 gal / 136 l
- Engine Hours
- ?
Accomodations
- Water Capacity
- 60 gal / 227 l
- Holding Tank Capacity
- ?
- Headroom
- ?
- Cabins
- ?
Calculations
- Hull Speed
-
10.8 kn
Classic: 7.55 kn
Hull Speed
The theoretical maximum speed that a displacement hull can move efficiently through the water is determined by it's waterline length and displacement. It may be unable to reach this speed if the boat is underpowered or heavily loaded, though it may exceed this speed given enough power. Read more.
Formula
Classic hull speed formula:
Hull Speed = 1.34 x √LWL
A more accurate formula devised by Dave Gerr in The Propeller Handbook replaces the Speed/Length ratio constant of 1.34 with a calculation based on the Displacement/Length ratio.
Max Speed/Length ratio = 8.26 ÷ Displacement/Length ratio.311
Hull Speed = Max Speed/Length ratio x √LWL
- Sail Area/Displacement
-
27.6
>20: high performance
Sail Area / Displacement Ratio
A measure of the power of the sails relative to the weight of the boat. The higher the number, the higher the performance, but the harder the boat will be to handle. This ratio is a "non-dimensional" value that facilitates comparisons between boats of different types and sizes. Read more.
Formula
SA/D = SA ÷ (D ÷ 64)2/3
- SA: Sail area in square feet, derived by adding the mainsail area to 100% of the foretriangle area (the lateral area above the deck between the mast and the forestay).
- D: Displacement in pounds.
- Ballast/Displacement
- ?
Ballast / Displacement Ratio
A measure of the stability of a boat's hull that suggests how well a monohull will stand up to its sails. The ballast displacement ratio indicates how much of the weight of a boat is placed for maximum stability against capsizing and is an indicator of stiffness and resistance to capsize.
Formula
Ballast / Displacement * 100
- Displacement/Length
-
111.5
100-200: light
Displacement / Length Ratio
A measure of the weight of the boat relative to it's length at the waterline. The higher a boat’s D/L ratio, the more easily it will carry a load and the more comfortable its motion will be. The lower a boat's ratio is, the less power it takes to drive the boat to its nominal hull speed or beyond. Read more.
Formula
D/L = (D ÷ 2240) ÷ (0.01 x LWL)³
- D: Displacement of the boat in pounds.
- LWL: Waterline length in feet
- Comfort Ratio
-
11.3
<20: lightweight racing boat
Comfort Ratio
This ratio assess how quickly and abruptly a boat’s hull reacts to waves in a significant seaway, these being the elements of a boat’s motion most likely to cause seasickness. Read more.
Formula
Comfort ratio = D ÷ (.65 x (.7 LWL + .3 LOA) x Beam1.33)
- D: Displacement of the boat in pounds
- LWL: Waterline length in feet
- LOA: Length overall in feet
- Beam: Width of boat at the widest point in feet
- Capsize Screening
-
2.8
>2.0: better suited for coastal cruising
Capsize Screening Formula
This formula attempts to indicate whether a given boat might be too wide and light to readily right itself after being overturned in extreme conditions. Read more.
Formula
CSV = Beam ÷ ³√(D / 64)
- Beam: Width of boat at the widest point in feet
- D: Displacement of the boat in pounds
Notes

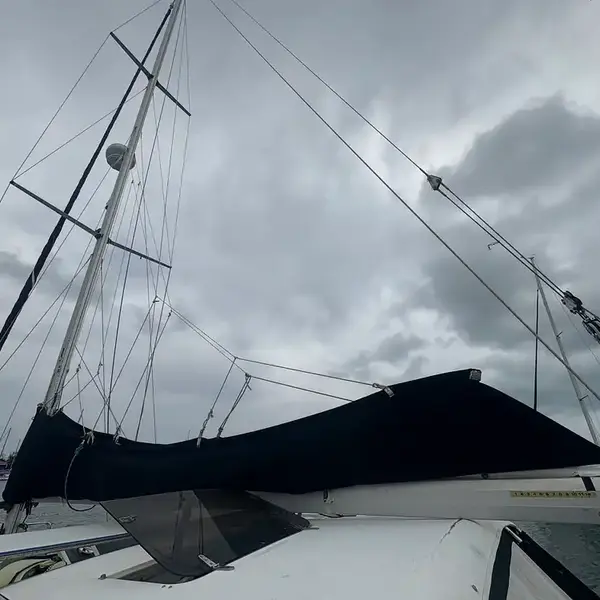

GEMINI 105MC is a development of the 105M with a number of interior updates. Most visibly, however, the cockpit of the 105Mc can be temporarily enclosed with either canvas or solid panels.
