Seller's Description

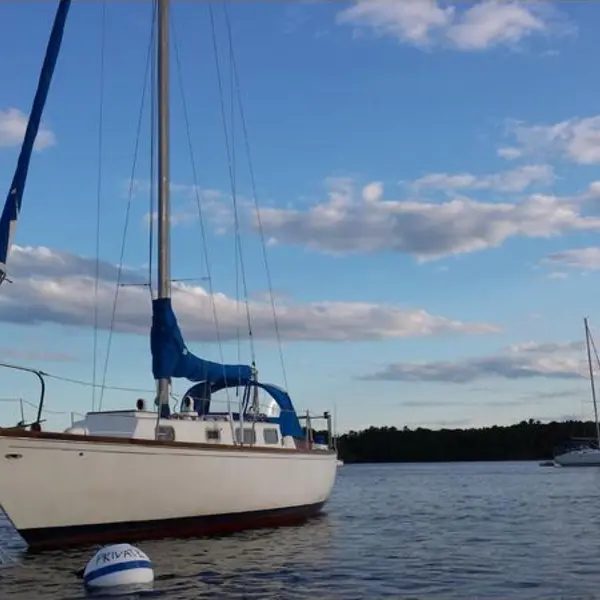

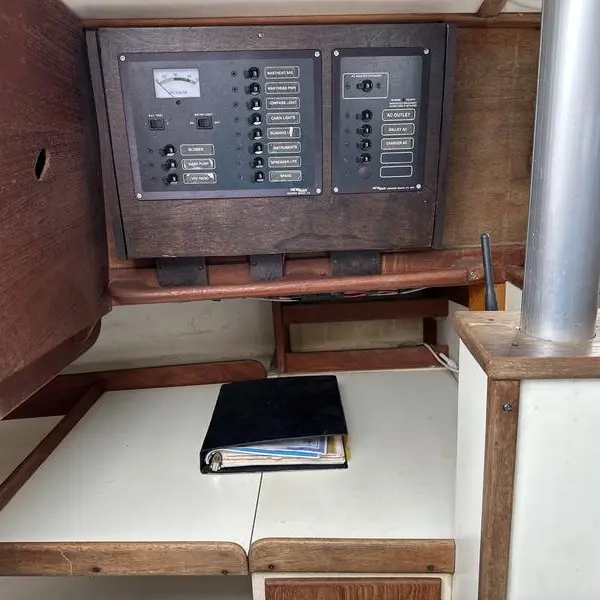

SOFIA is a beautiful example of an early racer/cruiser design. Well cared for over the years with extensive updates and cruising gear included. She has a Pelagic Autopilot system, a Jordan Series Drogue, and all new Tru-Designs thru-hulls. A new 4 Person Liferaft and EPIRB are also included (both 1 year old and unused) Other work of note includes a rebuilt centerboard and rudder, fresh paint down below in the cabin and on deck, a fully upgraded wiring system, solar panels, and much more. She has pressure fresh and raw water at the galley, along with a raw water wash down hose in the cockpit. A Lewmar windlass and 35 lb Mantus for anchoring. This boat has proved itself as a capable cruising yacht while sailing the West Indies two years ago, and also the perfect weekender. In 2020 two friends took a different Tartan 34C on a full circumnavigation of the world. They are well-built, safe boats and SOFIA is no exception. Asking $22,000, and this includes spring launch. Please reach out with any questions.

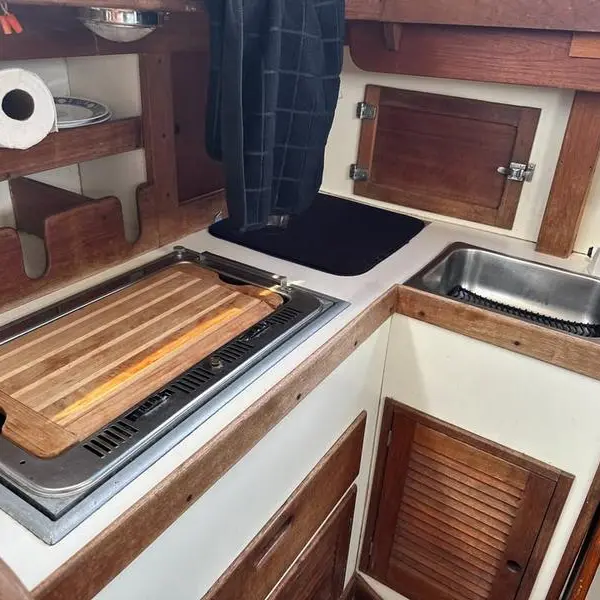

Equipment: -4 Man OceanSafety life raft -ACR globalfix EPRIB -Jordan Series Cone Drouge -Pelagic Auto Pilot System -Xintex Fireboy Gasoline fume detector -Solar charging system -Raymarine chart plotter and wind instruments -Updated Corian countertop in galley and deep sink, with pressure water -White/Blue LED spreader lights -Lewmar V2 Windlass -Mantus Anchor -2018 Mainsail w/ 2 reefs, 2016 150% genny, 2020 120% laminate (black) genny, symmetrical spinnaker w/ sock
Specs
- Designer
- Sparkman & Stephens
- Builder
- Tartan Yachts
- Association
- Tartan Owners Website
- # Built
- 525
- Hull
- Monohull
- Keel
- Stub + Centerboard
- Rudder
- ?
- Construction
- FG
Dimensions
- Length Overall
- 33′ 11″ / 10.4 m
- Waterline Length
- 25′ 0″ / 7.6 m
- Beam
- 10′ 0″ / 3.1 m
- Draft
- 3′ 10″ / 1.2 m — 4′ 0″ / 1.2 m
- Displacement
- 11,200 lb / 5,080 kg
- Ballast
- 5,000 lb / 2,268 kg (Lead)
Rig and Sails
- Type
- Sloop
- Reported Sail Area
- 527′² / 49 m²
- Total Sail Area
- 527′² / 48.9 m²
Mainsail
- Sail Area
- 240′² / 22.3 m²
- P
- 35′ 5″ / 10.8 m
- E
- 13′ 5″ / 4.1 m
- Air Draft
- 44′ 2″ / 13.5 m
Foresail
- Sail Area
- 287′² / 26.7 m²
- I
- 41′ 0″ / 12.5 m
- J
- 14′ 0″ / 4.3 m
- Forestay Length
- 43′ 4″ / 13.2 m
Auxilary Power
- Make
- Universal
- Model
- Atomic 4
- HP
- 30
- Fuel Type
- Gas
- Fuel Capacity
- 26 gal / 98 l
- Engine Hours
- ?
Accomodations
- Water Capacity
- 36 gal / 136 l
- Holding Tank Capacity
- ?
- Headroom
- ?
- Cabins
- 2
Calculations
- Hull Speed
-
6.9 kn
Classic: 6.7 kn
Hull Speed
The theoretical maximum speed that a displacement hull can move efficiently through the water is determined by it's waterline length and displacement. It may be unable to reach this speed if the boat is underpowered or heavily loaded, though it may exceed this speed given enough power. Read more.
Formula
Classic hull speed formula:
Hull Speed = 1.34 x √LWL
A more accurate formula devised by Dave Gerr in The Propeller Handbook replaces the Speed/Length ratio constant of 1.34 with a calculation based on the Displacement/Length ratio.
Max Speed/Length ratio = 8.26 ÷ Displacement/Length ratio.311
Hull Speed = Max Speed/Length ratio x √LWL
- Sail Area/Displacement
-
16.9
Sail Area / Displacement Ratio
A measure of the power of the sails relative to the weight of the boat. The higher the number, the higher the performance, but the harder the boat will be to handle. This ratio is a "non-dimensional" value that facilitates comparisons between boats of different types and sizes. Read more.
Formula
SA/D = SA ÷ (D ÷ 64)2/3
- SA: Sail area in square feet, derived by adding the mainsail area to 100% of the foretriangle area (the lateral area above the deck between the mast and the forestay).
- D: Displacement in pounds.
- Ballast/Displacement
-
44.7
>40: stiffer, more powerful
Ballast / Displacement Ratio
A measure of the stability of a boat's hull that suggests how well a monohull will stand up to its sails. The ballast displacement ratio indicates how much of the weight of a boat is placed for maximum stability against capsizing and is an indicator of stiffness and resistance to capsize.
Formula
Ballast / Displacement * 100
- Displacement/Length
-
320.0
300-400: heavy
Displacement / Length Ratio
A measure of the weight of the boat relative to it's length at the waterline. The higher a boat’s D/L ratio, the more easily it will carry a load and the more comfortable its motion will be. The lower a boat's ratio is, the less power it takes to drive the boat to its nominal hull speed or beyond. Read more.
Formula
D/L = (D ÷ 2240) ÷ (0.01 x LWL)³
- D: Displacement of the boat in pounds.
- LWL: Waterline length in feet
- Comfort Ratio
-
28.1
20-30: coastal cruiser
Comfort Ratio
This ratio assess how quickly and abruptly a boat’s hull reacts to waves in a significant seaway, these being the elements of a boat’s motion most likely to cause seasickness. Read more.
Formula
Comfort ratio = D ÷ (.65 x (.7 LWL + .3 LOA) x Beam1.33)
- D: Displacement of the boat in pounds
- LWL: Waterline length in feet
- LOA: Length overall in feet
- Beam: Width of boat at the widest point in feet
- Capsize Screening
-
1.8
<2.0: better suited for ocean passages
Capsize Screening Formula
This formula attempts to indicate whether a given boat might be too wide and light to readily right itself after being overturned in extreme conditions. Read more.
Formula
CSV = Beam ÷ ³√(D / 64)
- Beam: Width of boat at the widest point in feet
- D: Displacement of the boat in pounds
Notes
S&S Design No. 1904. The letter “C” has been adopted on the used boat market, “classic”, identifying it as the first 34 from Tartan. The second TARTAN 34, which is also a S&S design, is commonly referred to as the TARTAN 34-2.
There was an option (rarely selected) to substitute a pilot berth for the cabinet storage to port, over and outboard of the dinette.
The foot of the mainsail was shortened from the original design at least twice to improve balance and/or to lower it’s IOR rating.
Hull 125 and later: E = 12.0’
Hull 200 and later: E = 10.5’ (displayed here)
A yawl rig was advertised as an option.
